We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' AC/DC clamp current probe, oscilloscope probe 10x, high voltage differential probe, isolated oscilloscope probe with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

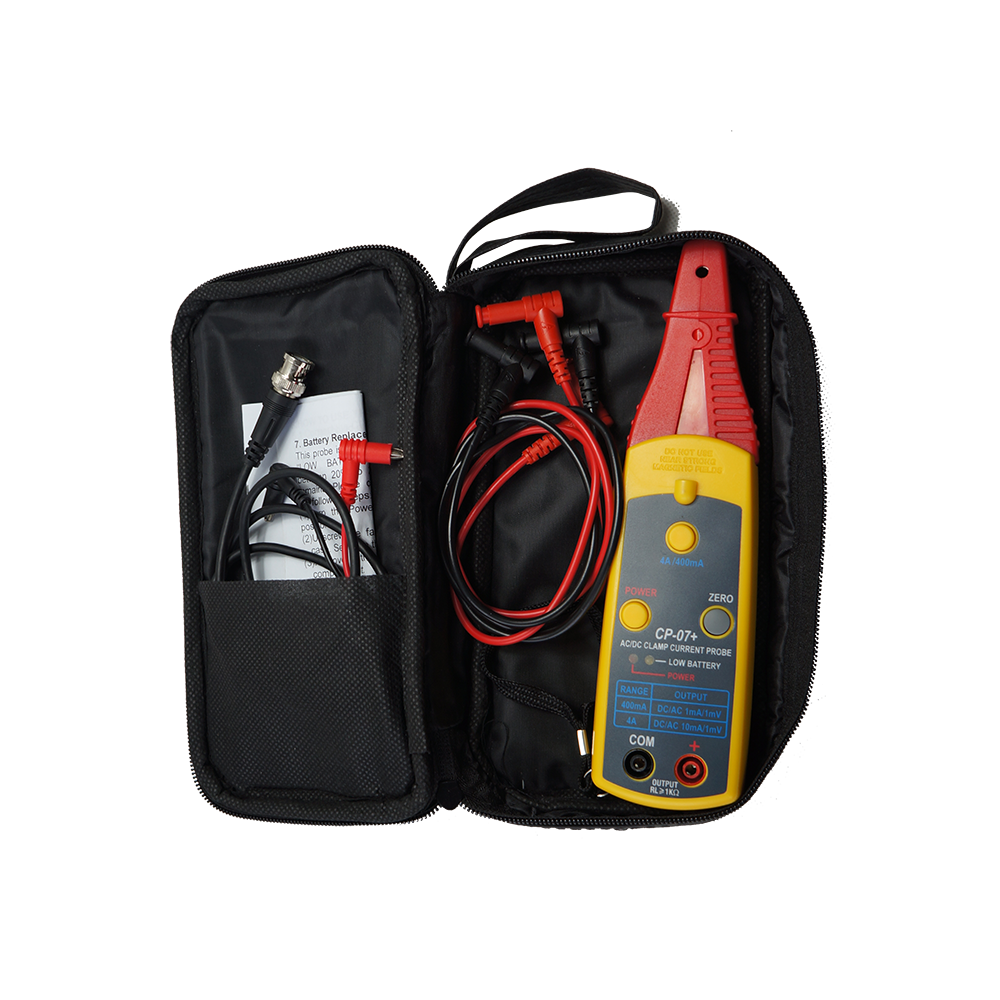

| Model | CP-07+ | ||
|---|---|---|---|
| Test Range | 400mA - 4A | ||
| Resolution | 0.1mA | ||
| Bandwidth | DC 1MHz (±3dB） | ||
| Jaw Size | 5mm (max) | ||
| Auto Zero at Power-on | √ | ||
| Power Supply | 9V 6F22 Battery | ||
| Operating Temperature | 0℃ to 50℃ | ||
| Operating Humidity | 15% to 70% RH | ||
| DC Current | Range | DCA 400mA | DCA 4A |
| Accuracy | ±1.5%rdg ± 5-digit | ||
| Sensitivity | 1mV/1mA | 1mV/10mA | |
| AC Current | Range | ACA 400mA | ACA 4A |
| Accuracy | ±2.0%rdg ± 5-digit | ||
| Sensitivity | 1mV/1mA | 1mV/10mA | |
| Dimension (W x H x D) | 215 x 36 x 58mm | ||
| Device Weight | 200g | ||
Specifications
Accessories
The accessories subject to final delivery.
-

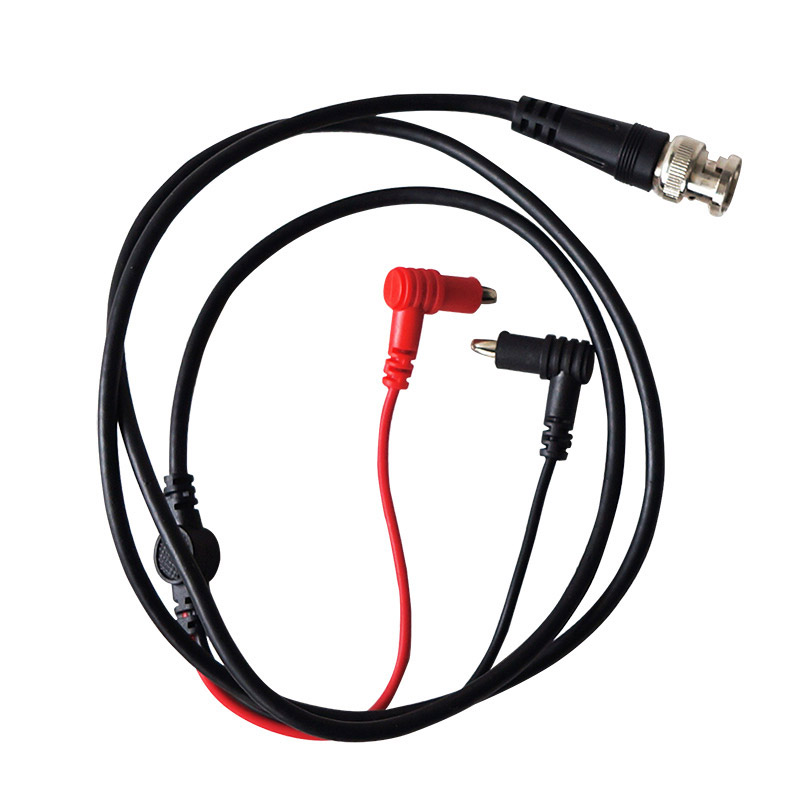

BNC Cable -

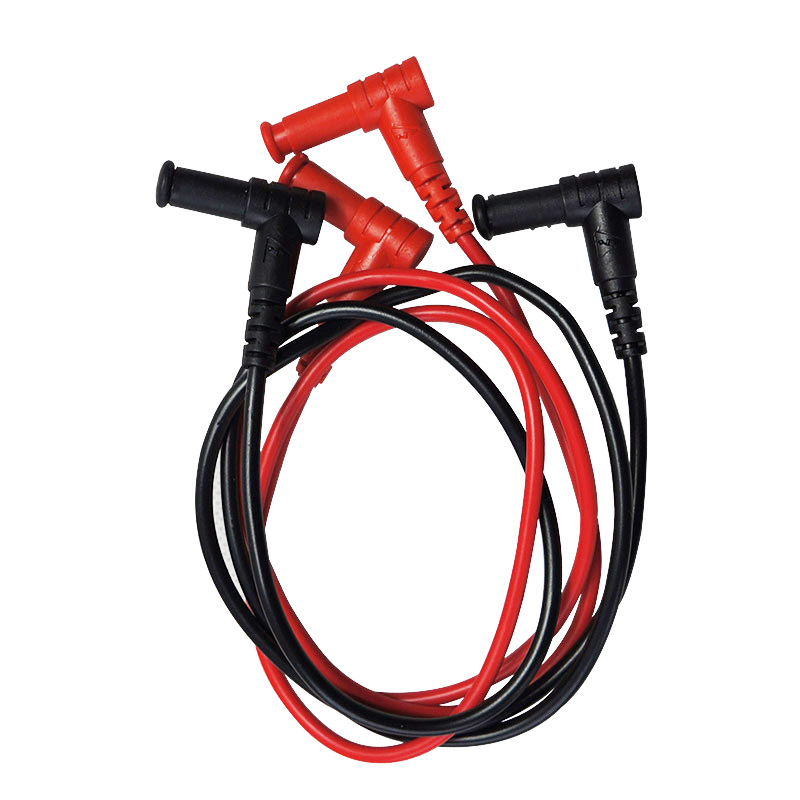

Extension Cord -

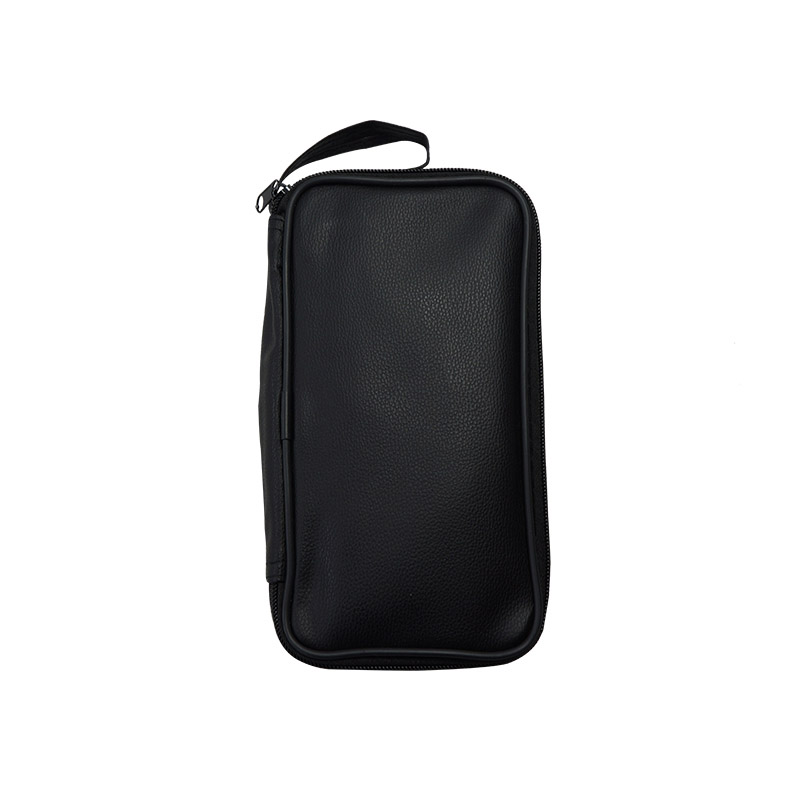

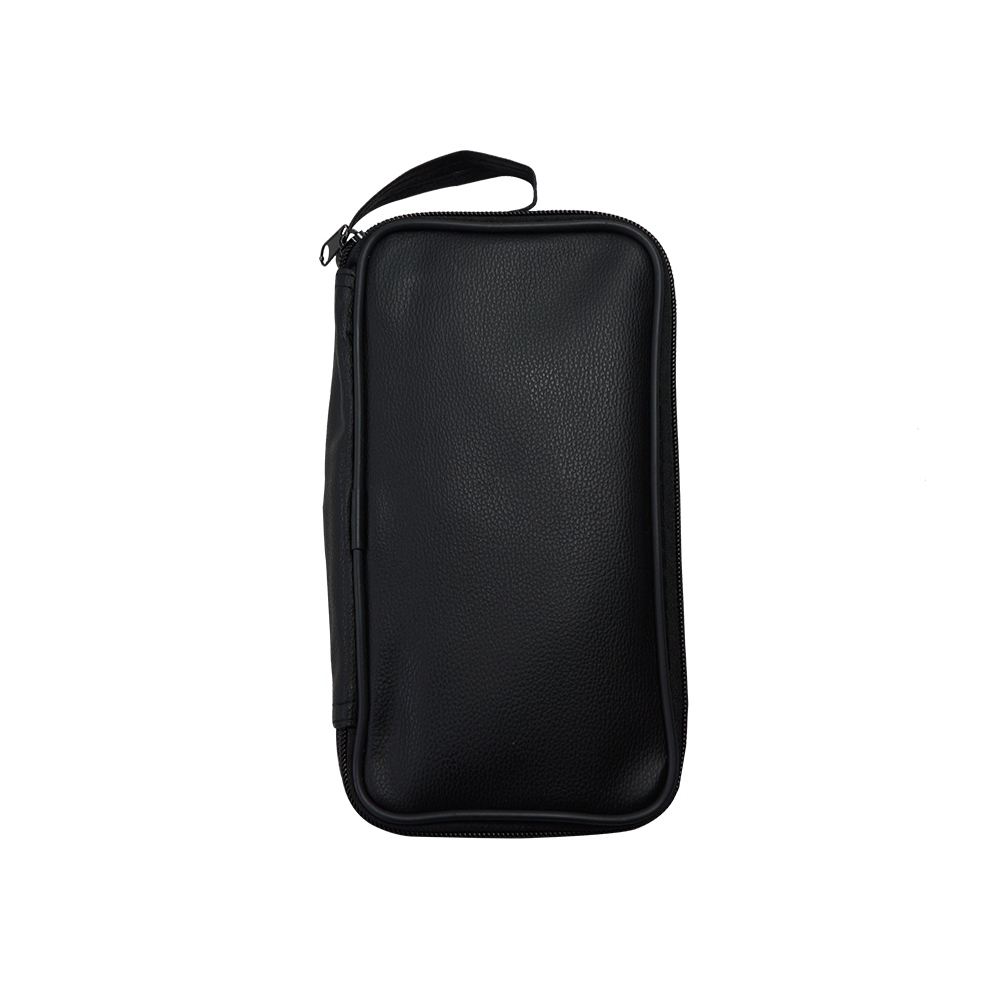

Soft Bag
